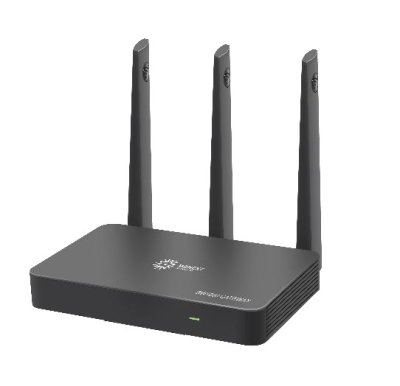

Indoor LoRaWAN Gateway GW1000
SKU : 250038
GW1000 is an indoor multifunctional LoRa gateway that supports LoRaWAN standard.
It offers various networking access methods including Wi-Fi, LTE universal connectivity, and Ethernet (RJ45 interface), and also
features router functionality.GW1000 can meet the needs for small-scale LoRaWAN networking and supplementing network signals.
Multiple features: WAN/4G network connection, firewall and DNS protection, remote OTA upgrade, self-diagno-sis and repair, TF
card log storage , anti-theft key,etc.
฿16,000
฿0
฿16,000
ราคาสมาชิก
฿0
ราคาสมาชิก
฿0
จำนวน
รายละเอียดสินค้า
LoRa Spec
Chipset ： Semtech SX1301/1257
Channels ： 8 uplink channels,1 downlink channel
Frequency Bands ： CN470/EU868/US915/AS923/ AU915
Max Transmit Power ： 20dBm
Rx Sensitivity ： -141dBm(SF12)
Device Class ： Class A,
LoRaWAN Specification ： 1.0.2,1.0.3, and 1.1
Interfaces and Communication
Ethernet ： 1*FE
Cellular (3G/4G) ： Optional
GPS ： Yes
WiFi ： 802.11n
Antenna Ports ： 1* LoRa N-Types、 1* WiFi N-Types
1*Cellular N-Types(Optional)
Others ： 1*SIM & 1*TF Card、USB Port, Reset Botton
Mechanical Spec
Power Supply ： 12VDC
Power Consumption ： <7W
Operating Temperature ： -10～50
Operating Humidity ： 5% to 95%, Non-Condensing
Dimension ： 180*115*30mm
