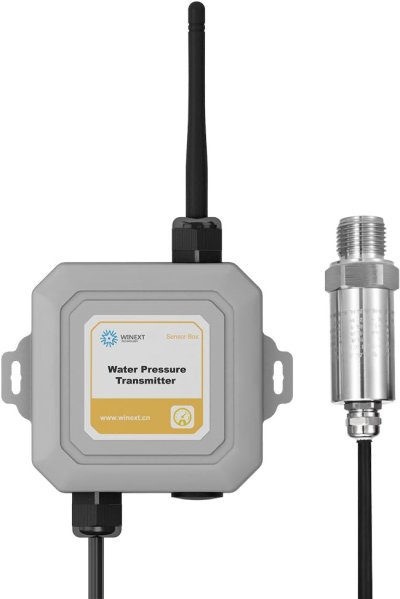

Water Pressure Transmitter AN-202A

The Winext AN-202A water pressure transmitter is a sensor based on the LoRaWAN protocol, designed for remote monitoring of the
pressure in water supply systems. The range of the pressure sensor is from 10kPa to 100MPa. It can be widely applied in industrial
control, monitoring, liquid pressure measurement, and control in fields such as chemical engineering, power, hydrology, and geology.
Equipped with a built-in 19000mAh lithium battery, it has a service life of over 3 years.
Water Pressure Transmitter AN-202A
Sensor Spec
Measurement Range ：10KPa~100MPa
Accuracy ：±0.5%FS
Stability： ±0.3%FS/YEAR
Power Spec
Battery Type ：Li-SOCl2 battery
Battery Capacity ：3.6V/19000mAh
Standby Current ：6uA
Tx Current ：125mA
Battery Life ：1 years nominal @5Minutes transmits
Mechanical and Environment
Operating Temperature ：0～85
Operating Humidity ：10%~95%
Ingress Protection ：IP67
Dimension ：SensorBox 110mm*110mm*45mm
Sensor 112mm*30mm
