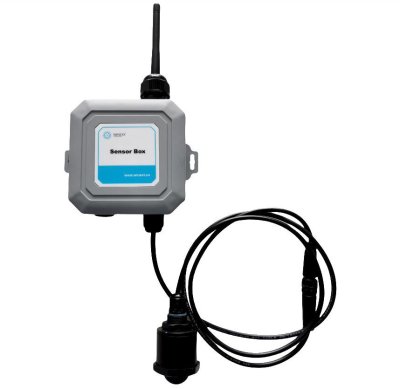

Radar Liquid Level Sensor AN-201L
SKU : 250002
AN-201L is a liquid level monitoring radar sensor based on LoRa Technology.With 80G high-frequency radar chip,it supports ranging
under different working conditions such as solid and liquid,The millimeter-wave radar can penetrate obstacles such as
light,rain,dust,fog,or frost to detect targets,making it a sensor that operates around the colock and in all weather conditions.It has the
advantages of high integration,long range and strong anti-interference ability.
AN-201L is widely used in liquid level measurement in industries such as water supply, sewage, petroleum, chemical, metallurgy,
food, pharmaceutical, papermaking and mining.
฿15,000
฿0
฿15,000
ราคาสมาชิก
฿0
ราคาสมาชิก
฿0
จำนวน
รายละเอียดสินค้า
Radio Spec
Frequency Bands ：CN470/EU868/US915/AS923/AU915
LoRa Protocol ：LoRaWAN CLASS A
Max Transmit Power ：19dBm
Max Rx Sensitivity ：-141dBm（SF=12）
Measurement Range:0.1~15/20m
Measurement accuracy:±2mm
Measurement frequency:80GHz
Data transfer rate:300bps～5.4Kbps
Environment Spec
Operating Temperature ：-20～+80
Operating Humidity ：10%~95%
Ingress Protection ：IP67
Interface: UART
Box Dimension ：110mm*110mm*45mm
Radar Sensor Dimension: Φ15mm
Power Spec
Power Supply ：3.6 V/19000mAH Battery (Built-in)
