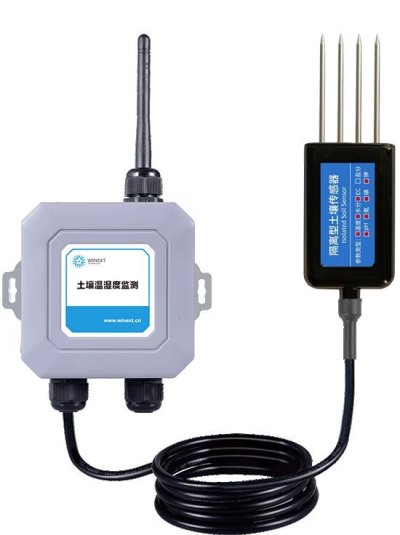

7-in-1 Soil Sensor AN-237
SKU : 250004
The AN-237 is a high-precision, 7-in-1 soil sensor designed for real-time monitoring of critical soil parameters, including temperature,
moisture, electrical conductivity (EC), pH, and NPK (nitrogen, phosphorus, potassium). Its corrosion-resistant, electrolysis-proof probe
is vacuum-sealed for complete waterproofing, enabling long-term burial in soil.
Featuring LoRaWAN technology for long-range, low-power wireless transmission, the AN-237 is ideal for smart agriculture, precision
irrigation, greenhouse management, environmental monitoring, and scientific research. It supports dual power options
(battery/external supply) and is housed in a rugged, industrial-grade enclosure for reliable operation in harsh conditions
฿0
฿0
ราคาสมาชิก
฿0
ราคาสมาชิก
฿0
จำนวน
รายละเอียดสินค้า
Radio Spec
Frequency Bands: EU868/US915/AS923/KR923/IN865MHZ (Optional)
LoRa Protocol ：LoRaWAN CLASS A
Data Tx Rate:300bps～5.4Kbps
Max Transmit Power ：19dBm
Max Rx Sensitivity:-141dBm（SF=12）
Sensor Spec
Moisture Range：0~100% (Accuracy:±2% for 0% to 50%)
Temperature Range:-30～70(Accuracy:±0.2)
EC Range:0～20000μS/cm(Accuracy:±2%FS)
PH Range:3～10(Accuracy:±1)
Nitrogen/Phosphorus/Potassium Range:0～1999mg/kg（mg/L）
Accuracy:±3%（mg/kg）
Power Spec
Battery Type ：Li-SOCl2 battery
Battery Capacity ：3.6V/19000mAh
Standby Current ：10uA
Tx Current ：130mA
Mechanical and Environment
Operating Temperature ：-30～70
Operating Humidity ：10%~95%RH(non-condensing)
IP Rate ：IP68 (Probe) , IP65(sensor box)
Dimension ：SensorBox: 110mm*110mm*45mm
Probe: 55mm，φ3mm
