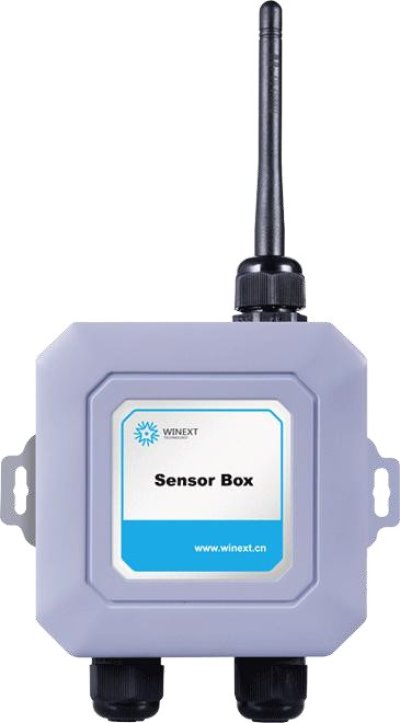

Sensor Box AN-201A
SKU : 250001
AN-201A Sensor Box is a multifunctional sensor data collection box that base on LoRaWAN protocol. It has a variety of
communication interfaces such as RS485, SPI, UART, ADC, GPIO, I2C, etc. to quickly connect to a variety of different sensors. It
quickly enables the networking and scaling of sensors and is the best choice for solving the fragmentation in LoRa IoT applications.
฿5,400
฿0
฿5,400
ราคาสมาชิก
฿0
ราคาสมาชิก
฿0
จำนวน
รายละเอียดสินค้า
Radio Spec
Frequency Bands ：CN470/EU868/US915/AS923/AU915
LoRa Protocol ：LoRaWAN CLASS A
Max Transmit Power ：19dBm
Max Rx Sensitivity ：-141dBm（SF=12）
Interface: RS485 / UART / SPI / I2C / GPIO / ADC
Max connected devices: up to 2 sensors
Supports BLE Configuration
Environment Spec
Operating Temperature ：-20～+80
Operating Humidity ：10%~95%
Ingress Protection ：IP65
Dimension ：110mm*110mm*45mm
Power Spec
Power Supply ：DC 12V/3A or 3.6 V/19000mAH (optional)
Tx Current ：125mA
